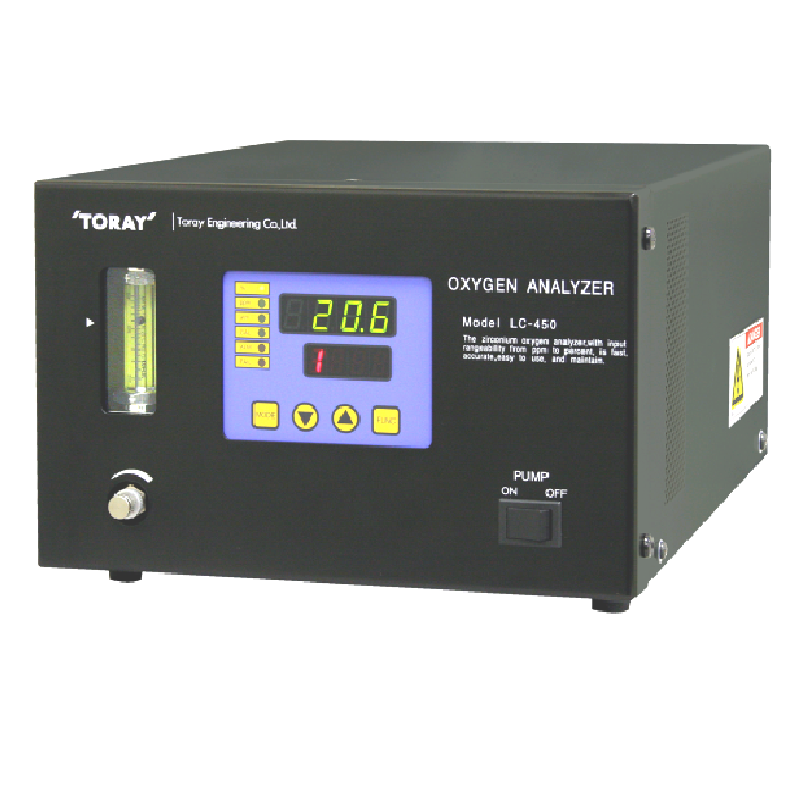

| Measurement principle | Battery-powered zirconia oxygen analyzer |
|---|---|
| Type | Desktop type / Panel mount type |
| Display system | 4-digit digital display (concentration display) |
| Measurement range | 0-1 / 10 / 100 / 1000ppm / 1 / 10 / 100vol%O2; 10-20 to 10-0atm Automatic range |
| Repeatability | Concentrations in the range ±1% of full scale and 0-1ppm, atm are not under the warranty range |
| Sampling system | Continuous suction with internal pump |
| Sample gas requirements | Pressure: Pressurization at 30KPa or less |
| Flow rate: 1,000-2,000mL/min | |
| Humidity: Dew point below ambient temperature | |
| Temperature: 0-100ºC | |
| Others: Not to contain corrosive gas (fluorine gas, chlorine gas, sulfuric gas, etc.), gas containing organic silicone, flammable ingredients (including gas), oil or moisture | |
| Reference gas | Atmospheric air |
| Recorder output | Oxygen level output: Switch between 4-20mA or 0-20mA (0-10V optional); insulated; load resistance of 550Ω or less Recorder output range taken as full scale and oxygen concentration given in linear output Output range: 0-100% / 0-1000ppm / 0-100ppm / 0-10ppm Automatic/fixed range |
| Transmission output | RS-232C |
| Alarm output | FAIL (device error): 1 point Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less Contact point closes with device error (contact point operation adjustable) ALM (concentration alarm): 2 points (L/LL) Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less Contact point closes with alarm (contact point operation adjustable) RDY (warmup signal): 1 point Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less Contact point closes during warmup (contact point operation adjustable) * Minimum open/close capacity of the non-voltage contact point is 12V or 20mA or higher; unable to respond to tiny loads MRK (range marker) output: 2 points Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less |
| Warmup time | Under 5 min. |
| Dimensions | Body: 210(W)×134(H)×300(D)mm (excludes protruding parts) |
| Weight | Approx. 6kg |
| Gas connection | INLET: Rc1/4 |
| BYPASS OUT: Rc1/4 | |
| OUTLET: Rc1/4 | |
| Power | 100-240VAC; 50VA (Normal: 35VA) 50Hz/60Hz |
| Measurement principle | Battery-powered zirconia oxygen analyzer |
|---|---|
| Type | Desktop type / Panel mount type |
| Display system | 4-digit digital display (concentration display) |
| Measurement range | 0-1 / 10 / 100 / 1000ppm / 1 / 10 / 100vol%O2; 10-20 to 10-0atm Automatic range |
| Repeatability | Concentrations in the range ±1% of full scale and 0-1ppm, atm are not under the warranty range |
| Sampling system | Continuous suction with internal pump |
| Sample gas requirements | Pressure: Pressurization at 30KPa or less |
| Flow rate: 1,500L/min | |
| Humidity: Dew point below ambient temperature | |
| Temperature: 0-50ºC | |
| Others: Not to contain corrosive gas (fluorine gas, chlorine gas, sulfuric gas, etc.), gas containing organic silicone, flammable ingredients (including gas), oil or moisture | |
| Reference gas | Atmospheric air |
| Recorder output | Oxygen level output: 0-10VDC; insulated; load resistance of 600kΩ or more (Option: 4-20mADC; insulated; load resistance of 550Ω or less) Recorder output range taken as full scale and oxygen concentration given in linear output Output range: 0-100% / 0-1000ppm / 0-100ppm / 0-10ppm; automatic/fixed range |
| Transmission output | RS-232C |
| Alarm output | FAIL (device error): 1 point Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less Contact point closes with device error (contact point operation adjustable) ALM (concentration alarm): 2 points (L/LL) Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less Contact point closes with alarm (contact point operation adjustable) RDY (warmup signal): 1 point Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less Contact point closes during warmup (contact point operation adjustable) * Minimum open/close capacity of the non-voltage contact point is 12V or 20mA or higher; unable to respond to tiny loads MRK (range marker) output: 2 points Non-voltage contact; contact capacity: 30VDC/AC or less, 0.5A or less |
| Warmup time | Under 5 min. |
| Dimensions | Body: 240(W)×134(H)×210(D)mm (excludes protruding parts) |
| Weight | Approx. 5 kg |
| Gas connection | INLET: Rc1/8 |
| BYPASS OUT: Rc1/8 | |
| OUTLET: Rc1/8 | |
| Power | 24VDC±10%, 1.25A (30VA at normal condition) |
